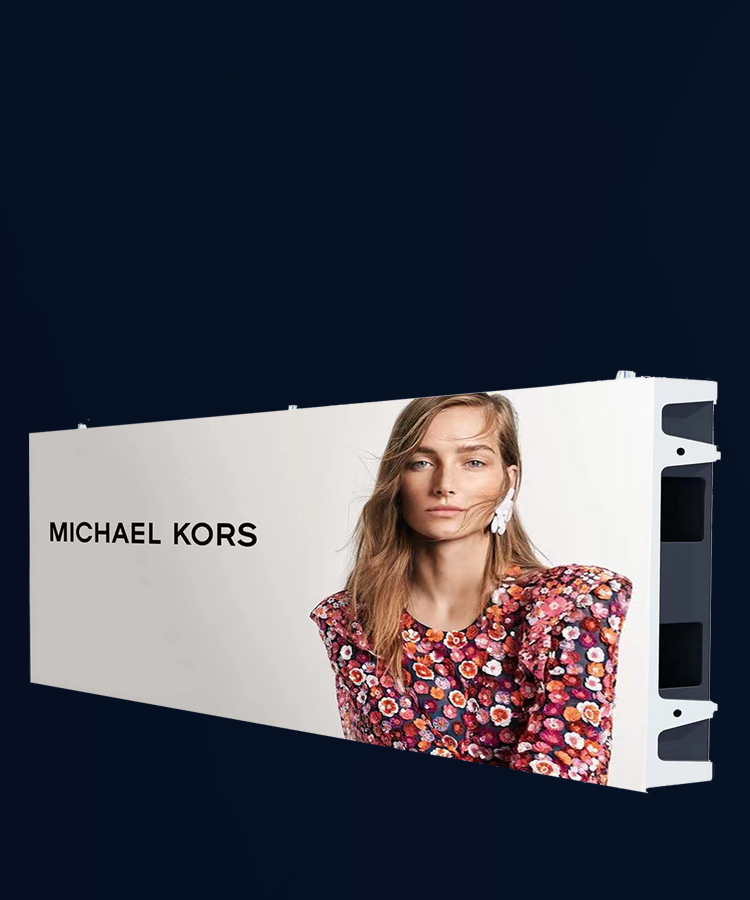

Diversified anomalous shape screen application scenarios on commercial display

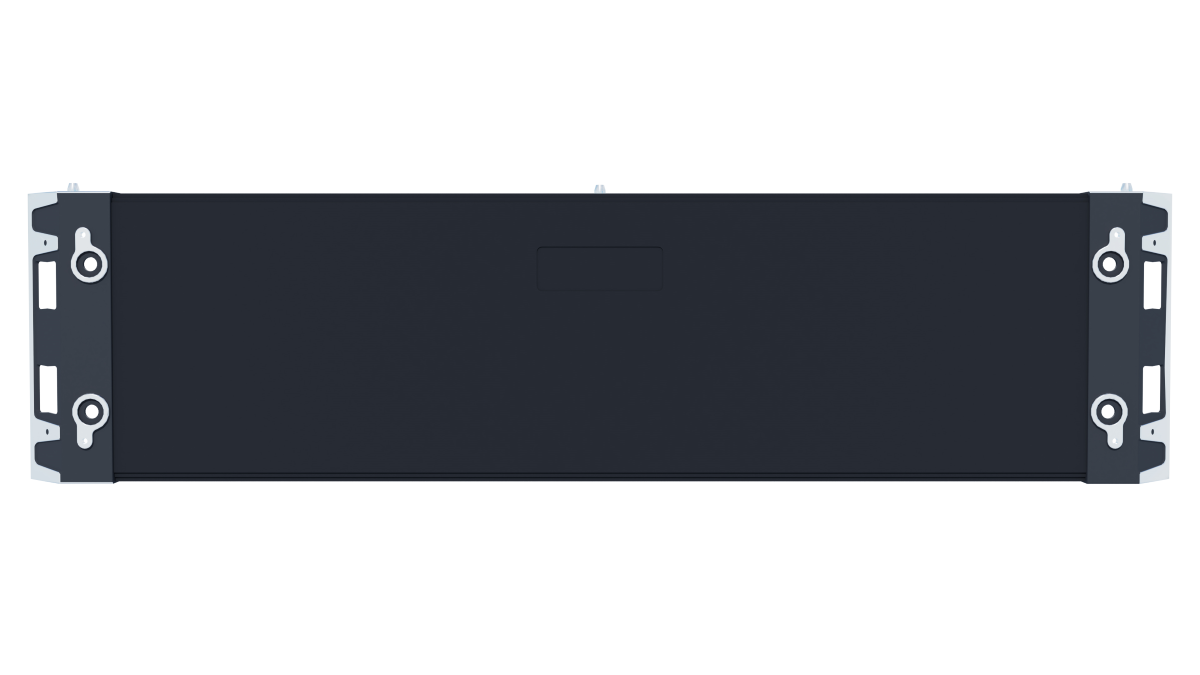

Front access module with magnets, quick and fast installation and maintenance
| Product Model | NEK1.9 | NEK2.5 | NEK3.9 |
| Pixel Pitch(mm) | 1.953 | 2.5 | 3.906 |
| Pixels per square meter(Pixels/m²) | 262144 | 160000 | 65536 |
| Brightness(nits) | 1000 | 1000 | 1000 |
| Grayscale | 14-16 | 14-16 | 14-16 |
| Refresh Rate(HZ) | 3840 | 3840 | 3840 |
| Cabinet Size(mm) | 1000(w)x250(h)x40(t) 750(w)x250(h)x40(t) 500(w)x250(h)x40(t) | 1000(w)x250(h)x40(t) 750(w)x250(h)x40(t) 500(w)x250(h)x40(t) | 1000(w)x250(h)x40(t) 750(w)x250(h)x40(t) 500(w)x250(h)x40(t) |
| Cabinet Material | Die-cast + Aluminum | Die-cast + Aluminum | Die-cast + Aluminum |
| Module Size(mm) | 250x250 | 250x250 | 250x250 |
| Cabinet Weight(KG) | 4.8 | 4.8 | 4.8 |
| Peak Power Consumption(W/m²) | 550 | 478 | 326 |
